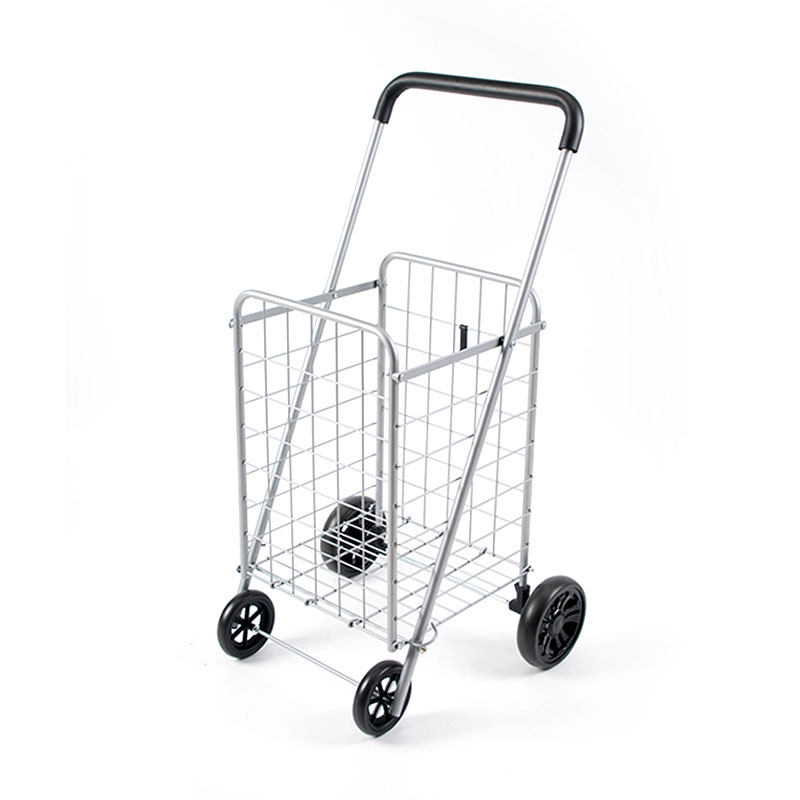

The Metal Rolling Shopping Cart is a metal roller shopping cart designed for supermarket shopping, community delivery, and household large-item transport.

Metal Rolling Shopping Cart Features

High-Load Structure

The main frame is constructed of a combination of 20 x 0.9 mm and 16 x 0.8 mm carbon steel tubing. The bottom beam is reinforced in a "cross" pattern and supplemented with triangular braces. The basket's bottom wire has a diameter of 3 mm and a mesh of 25 x 25 mm. It has a static load capacity of 100 kg and a dynamic load capacity of 70 kg. The Metal Rolling Shopping Cart has passed 10,000 back-and-forth rolling cycles and a 10-degree slope stability test. It turns with no twisting when fully loaded, and the frame welds have been impact-tested and show no cracks. It is suitable for continuous handling of heavy items such as beverage cartons, rice, flour, and oil.

Large Loading Capacity

The basket's internal dimensions are approximately 620 x 420 x 360 mm, with a usable volume of 85 liters. The base platform measures 450 x 320 mm, allowing for additional stacking of cartons or long items. Two side lashing holes and an included 600mm bungee cord with a single-point pull of 10kg ensure secure attachment of water bottles, parasol flags, or rolls. The basket rim height is optimized to 320mm, reducing waist strain during loading and unloading, and minimizing fatigue during multiple lifts.

Low-noise casters

The front wheels are 5-inch, 360-degree swivel, while the rear wheels are 8-inch directional. They feature a 28mm wide wheel width and are made of silent TPE tread. Dual ball bearings reduce rolling resistance, resulting in a noise level of less than 55dB at 3km/h on tiled surfaces. There's no noticeable jerking when crossing 15-20mm gaps. Optional 8-inch pneumatic rear wheels are available for outdoor use on stone and asphalt surfaces, perfect for versatile applications.

Stable and anti-rolling

The 490mm wheelbase shifts the center of gravity rearward, placing approximately 55% of the load on the rear axle, ensuring greater stability in straight-line driving. The ground clearance is 150mm, ensuring both easy maneuverability and scratch resistance. The integrated rear wheel pedal brake instantly locks during loading and unloading on ramps. The minimum turning radius is less than one meter, allowing for quick U-turns between elevators and densely packed shelves. Narrow aisles eliminate foot contact, ensuring safer encounters.

Corrosion-resistant and durable:

The powder coating is 80 to 90 microns thick and withstands a 72-hour neutral salt spray test without blistering or noticeable gloss loss. Galvanized bolts with lock washers are used for fasteners. Welds are polished and sealed with primer, and the color remains unchanged after wiping with common alcohol and neutral cleaners for 1,000 times. Operating temperatures range from -20 to 60°C, making it suitable for cold storage replenishment and summer exposure, and it withstands oxidation during long-term use indoors and outdoors.

Ergonomics:

The push handle has three height settings: 980, 1,200, and 1,060mm, suitable for heights between 155 and 190 cm. The grip is 20mm thick EVA, ensuring slip-resistant handling with wet hands. The Metal Rolling Shopping Cart weighs approximately 8.6kg and is easy to lift into the trunk. The rounded corners and plastic cover make it easy to store against a wall without scratching the paint. A file clip on the front allows for easy storage of picking or delivery lists.

Stackable Shipping

This model is a non-folding, durable model, but it supports nested storage. A stack of eight to ten units can reach a height of approximately 1,800 mm, significantly reducing warehouse space. It comes 70% pre-assembled at the factory, and unpacking and commissioning takes approximately three to five minutes. Each unit measures 105 x 43 x 38 cm and weighs approximately 10.00 kg. A recommended load of 350 to 400 units per 20-foot container maximizes container utilization.

Easy Maintenance and Versatile Compatibility

The casters utilize M8 quick-release nuts and standard 608ZZ bearings, allowing for replacement in less than ten minutes. The bearings, covers, bungee cords, and side hooks are universal, making spare parts easy to source. Grease and sealing caps are included, along with a quarterly inspection checklist covering axle play, brake return, weld appearance, and coating integrity, facilitating a cost-effective maintenance process.

Metal Rolling Shopping Cart Applications

Forward warehouse and pickup point replenishment

Suitable for frequent, short-distance transfers from warehouses to store fronts. Low-noise TPE wheels ensure smooth operation during early morning pre-opening hours. The 85-liter capacity accommodates both fresh produce baskets and cartons. The cart's route includes slopes and gaps between the ground. The eight-inch rear wheels provide stability, and the pedal brake prevents slipping during loading and unloading at the slope. Picking orders are secured in folders for smoother batch verification.

Community group purchase sorting stations

Batches with multiple SKUs and a fast pace require fast loading and clear zoning. The upper basket and lower tray allow for separate storage of refrigerated and ambient items. Side strapping holes for labeling and color coding prevent volunteers from making mistakes when delivering by building. Stacking storage frees up aisles, and after closing, the cart is aligned against the wall, ensuring unobstructed access for nighttime cleaning.

Hospital logistics corridor delivery

Emphasizes low noise and easy disinfection. The TPE wheels are quiet, and the powder-coated and galvanized parts are resistant to alcohol and chlorine-containing cleaners. Bedding, consumables, and medications are stored separately, offering a significant advantage in corridors with numerous turns, with a one-meter turning radius. Pedal brakes secure parking in elevator halls and ramp entrances, allowing vehicles to be stacked and stored at the end of each shift, reducing space.

School cafeteria stocking aisles

Early morning centralized stocking requires stability and load-bearing capacity. A static load of 100 kg and a dynamic load of 70 kg are required to cover rice bags, oil drums, and vegetable baskets. Mesh baskets secure small, loose items, ensuring they don't fall out. File folder holders hold menus for easy reconciliation. TPE tires provide better grip on slippery surfaces, preventing slipping.

Airport duty-free shop restocking

Quiet and highly maneuverable are required during business hours. A low noise level of 55 decibels ensures minimal disruption to passengers on smooth floors, while a minimum turning radius of less than one meter allows for maneuvering through narrow display areas. Restocking lists are secured in the folder area, and vehicles can be stacked and placed centrally during security checkpoints, minimizing aisle occupancy.

Convention and exhibition center setup and dismantling

Crowded aisles, with numerous cable ducts and temporary steps. The eight-inch rear wheels offer strong cross-travel capabilities, allowing roll-up stands and sample boxes to stand upright and be secured with elastic cords. Quiet operation during nighttime setup eliminates disturbances to neighboring exhibitors, and multiple units can be stacked and pushed together for efficient security clearance during dismantling, reducing both transportation and labor costs.

Urban farmers' morning markets

Wet grounds and high foot traffic demand corrosion resistance and flexibility. The powder coating resists moisture, and the galvanized fasteners resist corrosion. The five-inch universal joints allow for easy movement between stalls, and the basket rim height is ideal for frequent loading and unloading of leafy vegetables and fruit. Multiple units can be stacked in the back of a van after closing, improving turnover efficiency.

Residential basement garages for family shopping

The path from parking spaces to elevators often has slopes and gaps. The 85-liter capacity allows for easy handling of beverages and rice, and the pedal brake is reliable and secure for loading and unloading on sloped edges. Folding is unnecessary, and two units can be stacked against a wall without taking up space. The EVA handle provides a gentle feel for long-distance pushing, making weekend shopping a breeze.
