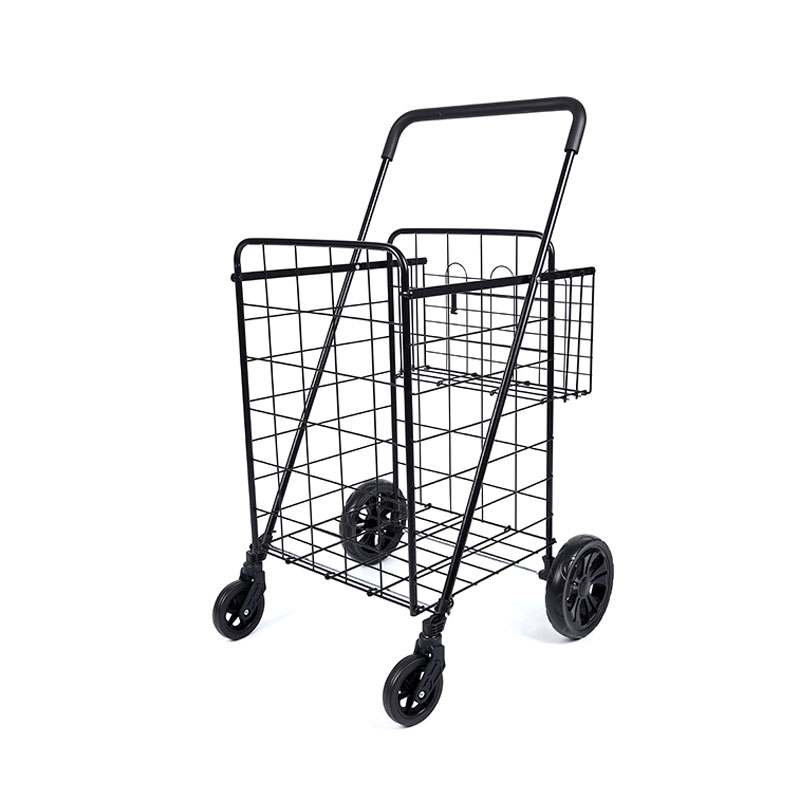

The Collapsible Metal Shopping Cart is a foldable metal shopping cart designed for home shopping and light transport.

Collapsible Metal Shopping Cart Features

High Load Capacity

The main frame features a combination of 16 x 0.8 mm and 20 x 0.9 mm diameter tubes, with a cross-shaped reinforced bottom beam and triangular bracing. The basket's bottom wire diameter is 3 mm, and the mesh is 25 x 25 mm. It has a static load capacity of 90 kg and a dynamic load capacity of 60 kg. It has passed 10,000 rolling cycles and a 10° slope stability test, and can turn with no twisting when fully loaded. It is suitable for transporting heavy items such as beverage cartons, rice, flour, and oil.

Quick Folding

A double-link + pull-ring lock mechanism allows for 2.5-second expansion and contraction; the cart automatically locks to prevent folding back after expansion. The folded dimensions are approximately 1000 x 400 x 160 mm, with a net weight of approximately 7.4 kg, making it easy for one person to carry. After folding, it can be stored independently, saving space in entryways and hallways.

Silent casters

Front 5" 360° universal swivel, rear 8" directional tread made of low-noise TPE material, 28 mm wheel width, and double ball bearings for reduced rolling resistance. Operating noise is ≤55 dB at 3 km/h on tiled surfaces, and there's no noticeable jerking when crossing 15-20 mm joints. Suitable for supermarket floors, underground garages, and residential stone pavement.

Large Capacity

The basket measures approximately 600 × 400 × 325 mm, with a usable capacity of 75-80 L. The base platform measures 420 × 300 mm, allowing for additional stacking of cartons or rice bags. A 600 mm bungee cord and two lashing holes are standard, with a single-point pull of ≥10 kg, allowing long objects to be tied to the vertical pipe without slipping.

Corrosion-resistant and durable

The powder coating shows no blistering or noticeable gloss loss after a 72-hour salt spray test. Fasteners include galvanized bolts and lock washers. The welds are polished and sealed with a primer, and can withstand 1000 daily wipes with alcohol and neutral detergent. Operating temperatures range from -20°C to 60°C, making them suitable for cold storage restocking and summer exposure.

Stable and Anti-Tilt

The 485 mm wheelbase and rearward-shifted center of gravity place approximately 55% of the load on the rear axle. Ground clearance is 150 mm, ensuring both maneuverability and stability. The integrated rear wheel pedal brake allows for single-touch locking when loading and unloading on ramps. The minimum turning radius is ≤ 1 m, making U-turns in elevators and narrow corridors easy.

Ergonomic Comfort

The push handle has three height settings: 980 mm, 1020 mm, and 1060 mm, suitable for heights between 155 and 190 cm. The 20 mm thick EVA grip prevents slipping with wet hands. The required thrust for long-distance linear pushes is significantly lower than that of bearingless casters, reducing the effort required for continuous use.

Easy Maintenance and Shipping

The caster's quick-release nuts are M8, allowing replacement in 10 minutes. The side hooks and straps are universal and easy to purchase. The entire machine is 70% pre-assembled, and it takes about 3 minutes to go from unboxing to use. Each unit is packed in a box measuring 1020×420×170 mm, with a gross weight of approximately 8.2 kg. A 20-foot GP carton is recommended for loading 450–500 units.

Collapsible Metal Shopping Cart Application

Weekend shopping for urban families

From the parking space to the elevator and then to the entrance, the route includes ramps and joints. The 75-80L basket can hold both beverage crates and fruit and vegetable boxes. The 8" rear wheels provide greater stability over speed bumps. The 16cm foldable basket supports wall support, and the pedal brake prevents rolling during loading and unloading on ramps, enhancing safety and efficiency at home.

Community Fresh Produce Store Backstage

Frequent, short-distance handling from cold storage to shelves requires low noise and moisture resistance. TPE silent tires prevent slipping in wet conditions, and the powder coating resists condensation. 600x400 turnover boxes fit directly into the basket, allowing for smooth U-turns even in aisles as narrow as 1m. After closing, the basket folds up and stands upright in seconds, freeing the aisle.

Restocking Farmers' Market Stalls

Maneuvering through the morning crowds requires flexibility and durability. The 5" universal wheels offer responsive steering, and the width is kept to 480mm to prevent skidding. Elastic cords secure the basket to prevent it from rolling over bumps. After closing, the basket can be stored in the van's side compartment along with the folding table for faster evacuation.

E-commerce Small Warehouse Picking Aisles

Densely packed shelves require a tight turning radius and stable linear positioning. Double-bearing casters offer low rolling resistance, saving effort in long aisles. The "upper basket, lower support" zoning system is suitable for order-based picking, and side strapping holes accommodate barcode labels and scanners, making inventory and transfers more efficient.

Self-service laundromats

Material tested in wet areas and detergent environments. Powder-coated and galvanized fasteners are resistant to alcohol and detergents. Loading 10–15 kg of laundry at a time, the low 55 dB noise level makes it suitable for nighttime operations. The front universal steering and rear directional steering ensure maneuverability in narrow aisles.

Campus dormitory transport

Transportation across buildings for incoming freshmen or graduates moving out. Folds easily into elevators and around corners; 3mm mesh supports loose books without spilling; 8" rear wheels provide stability on steps; and EVA handles provide grip for long-distance transport.

Exhibition setup and dismantling

Crowded aisles, complex flooring, and low noise levels are essential. The large-diameter rear wheels provide stability across wire troughs and floor edges. Roll-up racks and sample boxes can be placed upright and secured with bungee cords. After work, they fold under exhibition tables or into the trunk wall for quick repositioning the next day.

Hospital back-office corridors

Require low noise levels and easy disinfection. TPE silent wheels operate quietly, and the metal surface is resistant to alcohol and chlorine-containing cleaners. The 75L basket transports bedding and cleaning supplies, and the pedal brake secures the vehicle in front of the elevator. Quick-release casters facilitate department-specific rotation and maintenance.
